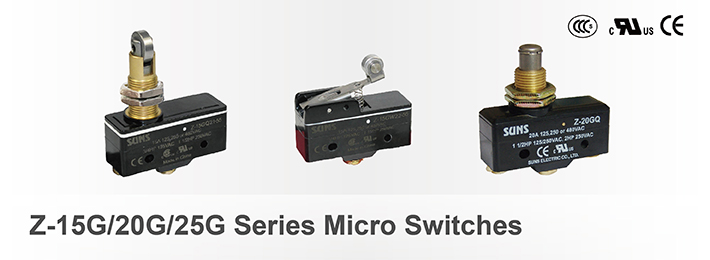

Z-15G Series Micro Switches

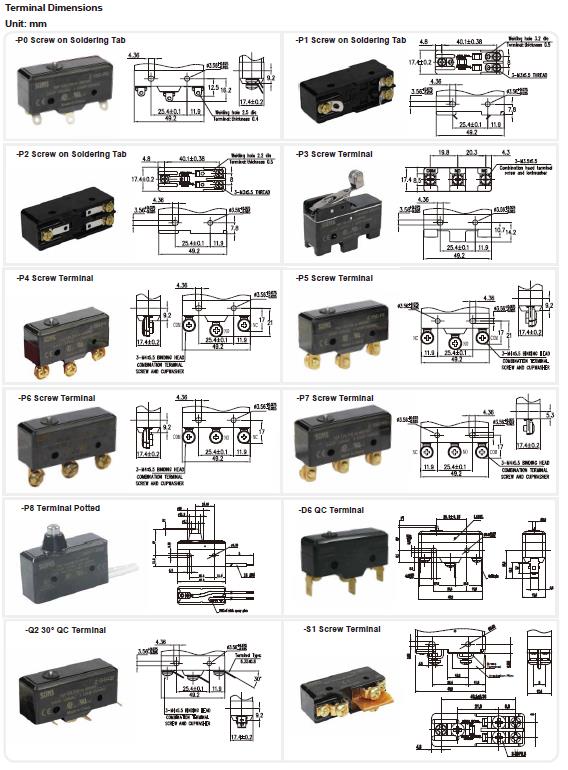

Features: General Standard	Installation dimensions:
Specifications: Operating Frequency: 0.01mm-1m/sec Rated Voltage/Current: 15/600VAC(UL file 240199) Service Life: Mechanically 1×107 (operations) Electrically 5×105 (operations) Operating Temperature: about -40~+105 (-40~+221) Humidity: <95%RH Degree of protection IP00/IP63 Delectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

Z-15G
Current Rating	Actuating Style	Sealing	Contact Material	Reset	Terminal Style	Circuitry
Z-15G: 15A	See Listings	None: Standard	None: Silver	None: No reset;	None: Screw terminal	None: 1NO/1NC
Z-20G: 20A		55: Sealed	K: Plated gold	R: Resettable with spring overtravel;	P0: Screw on soldering tab	X: 1NC
Z-25G: 25A				R1: Short reset	P1: Screw on soldering tab	Y: 1NO
				R2: Long reset	P2: Screw on soldering tab
					P3: Screw terminal
					P4: Screw terminal
					P5: Screw terminal
					P6: Screw terminal
					P7: Screw terminal
					Q1: QC terminal
					Q2: QC terminal
