Wireless Foot Switches with Receiver |
Features: •2 wireless technologies available:
- 2.4GHz RF wireless
- Bluetooth wireless
•Removes clutter of wires
•Easy to clean and move around
•Multiple systems can be used in close vicinity
•RF wireless use frequency-hopping spread spectrum (FHSS) RFID technology
•Transmitter powered by 4 (AA) batteries
•Long battery life
|

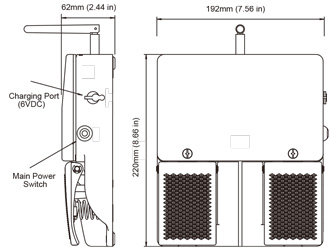

Installation dimensions:
![](/en/d/file/product.html/wireless_foot_switches/wireless_foot_switches_with_receiver/2015-11-02/7f594b13bbd05dc8ed182944fa60a936.jpg) |
Specifications: Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage Receiver output 10A/250VAC
Service Life Mechanically 1 x106 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Protocols IEC802.15.1
Standards EN 300 328,V1.7.1; IEC 60601-1-2;
EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1
Degree of Protection IPX8(NEMA 4, 4X, 6, 6P)
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Operating Frequency
|
60 ops/min
|
Insulation Resistance
|
>100mW@500V DC
|
Contact Resistance
|
<25mW (initial)
|
Rated Current/Voltage
|
Receiver output 10A/250VAC
|
Service Life
|
Mechanically 1 x106 (operations)
|
Operating Temperature
|
-30~+80oC (-22~176oF)
|
Protocols
|
IEC802.15.1
|
Standards
|
EN 300 328,V1.7.1, EN612326-1(2006);
EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1
|
Degree of Protection
|
IP65 (IP68 available on request)
|
6-Channel Receiver Module(with relay output)
RCV-RF-5
![5-Channel-Receiver-Module.jpg](/en/d/file/product.html/wireless_foot_switches/wireless_foot_switches_with_receiver/2015-11-02/a0e09e3aece14ac5f6c64b6893ae1e77.jpg)
Power Supply: 10-30V AC/DC
Output rating: 10A/2
7-Channel Receiver Module
RCV-RF-7
Power Supply: 10-30V AC/DC
Outputs:
5-channel switch output: 200mA (voltage=input voltage)
1 channel linear potentiometer output: 0-10K Ohm
* Contact us for custom circuit for OEM application ns
