| USB Wireless Foot Switches |
Features:
•2 wireless technologies available:
- 2.4GHz RF wireless
- Bluetooth wireless
•Pre-program key functions on the foot pedal by software provided
•Only requires a USB interface
•Compatible with Windows OS 2000/XP/Vista/7
•Available with medical grade waterproof pedals
•Switch functions can be assigned using software provided
•Transmitter powered by 4 (AA) batteries
•Long battery life
|
Installation dimensions:
 |
Specifications:
Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Service Life Mechanically 1 x106 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Protocols IEC802.15.1
Standards EN 300 328,V1.7.1, EN612326-1(2006);
EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1
Degree of Protection IP65 (IP68 available on request)
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-

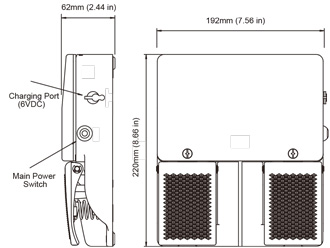

Dimensions:
FS-62-RF-USB (2.4GHz)
FS-62-BT-USB (Bluetooth)
Specifications
|
Operating Frequency
|
60 ops/min
|
|
Insulation Resistance
|
>100mW@500V DC
|
|
Contact Resistance
|
<25mW (initial)
|
|
Service Life
|
Mechanically 1 x106 (operations)
|
|
Operating Temperature
|
-10~+80oC (-22~176oF)
|
|
Operating Temperature
|
2.40 - 2.483 GHz
|
|
Protocols
|
IEC802.15.1
|
|
Standards
|
EN 300 328,V1.7.1, EN612326-1(2006);
EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1
|
|
Degree of Protection
|
IP20/NEMA 1
|
Standard Receiver Module
RCV-RF-USB (2.4GHz)
RCV-BT-USB (Bluetooth)
Operating Voltage 5VDC
Operating Frequency 2.4GHz, RF / BT
Communication distance 10 m
LED power / communication connection instructions
The receiver can be single or continuous trigger available on request
