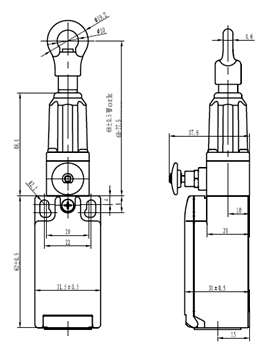

cable pull switches with reset SND4170-LR(Metal body)

　Features：
　*Positive Opening of NC contacts
*Screw terminals with self-lifting clamps for easy wiring
*Latch/Reset function
*Galvanically separated contacts
*Custom pull force for different applications

Specifications:
Operating Speed: 0.05mm-0.5m/sec
Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min
Insulation Resistance:　>100MΩ @ 500V DC
Rated Current/Voltage:　10A/600V AC (EN60947-5-1)
Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A600/ DC13 Q300
Service Life:　　　 Mechanically 10,000,000, Electrically 500,000
Operating Temperature:　-25~80℃(-13~176°F) without formation of ice
Degree of protection:　 IP65/IP67

SUNS Address:127 Rivemeck Road, Chelmsford, MA01824
Phone:+1-978-349-2329 Fax:+1-978-349-2330　E-mail:info@suns-usa.com
