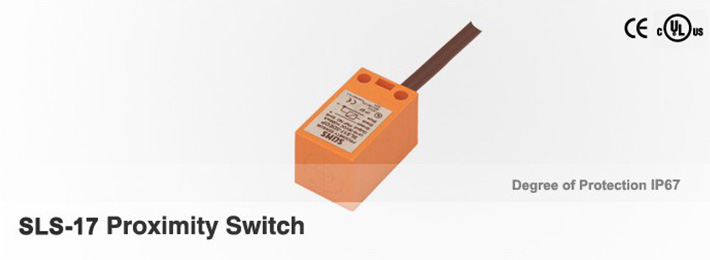

SLS-17 Proximity Switches

Features: * NO &NC Available * shielded &unshielded available * meet GB14048.10 * Short circuit protection * degree of protection: IP67	Installation dimensions:
Specifications: Sensing range(SN)　　　5mm±10% Rated voltage　　　　10 ～ 36VDC Rated current　　　<10mA( 24 v ) Frequency　　　　 620Hz Operating Temperature　　　-25～70℃ Load current　　　50mA

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

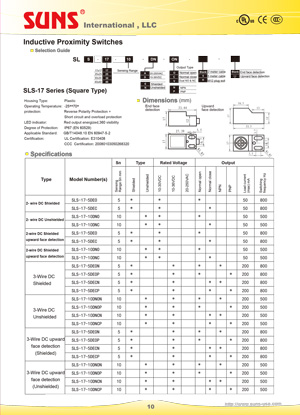

for example：SLS	17	2	D	E	O	N	H	P
Body Styles	Diameter	Sensing distance	Current	shielded	Output Type	Options	Options	Shell Type
SLS: Block	17:17x17mm	2: 2mm	A: 20-250VAC	E: shielded	O: Normal Open	N: NPN	Blank: 2m cable	Blank: Copper Nickel
			D: 10-36VDC	N: non-shielded	C: Normal Close	P: PNP	5: 5m cable	S: Stainless
					V: Dual NO&NC		H: M12	P: Plastic



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SLS-17-5D View Details
