SLC-12 Proximity Switches

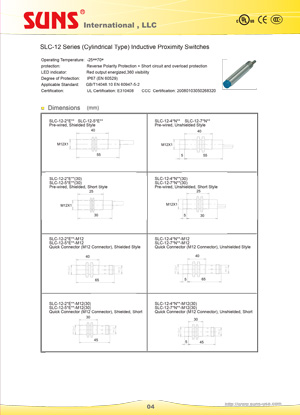

Features: ·Optional Normal Open or Normal Close ·Optional shielded or non-shielded ·EMC GB14048.10 ·Short-circuit protection ·Polarity-reversing protection ·Enclosure protection degree IP67	Installation dimensions:
Specifications: Operating voltage　　　　　　 10 ～ 36VDC Operating current　　　　　　 <10mA( 24 v ) Repeatability　　　　　　　< 5% Hysteresis　　　　　　　10% Leakage current　　　　　　　 < 10uA Voltage drop　　　　　　　　　< 2VDC Ambient temperature　　　　　-25～70℃ EMC　　　　　　　　　　　　　GB14048.10 Enclosure protection degree　　IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

for example：SLC	12	2	D	E	O	N	H	P
Body Styles	Diameter	Sensing distance	Current	shielded	Output Type	Options	Options	Shell Type
SLC: Cylindrical	12: M12	2: 2mm	A: 20-250VAC	E: shielded	O: Normal Open	N: NPN	Blank: 2m cable	Blank: Copper Nickel
			D: 10-36VDC	N: non-shielded	C: Normal Close	P: PNP	5: 5m cable	S: Stainless
					V: Dual NO&NC		H: M12	P: Plastic



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SLC-12-4D View Details
