CSB Series - SUNS international LLC

Overview

Selection Guide

Description	Legend Insert Markings	Mechanical Interlock	Enclosure Color			Contact Symbol
Description	Legend Insert Markings	Mechanical Interlock	Yellow	Black	Red	Contact Symbol
Single Speed	Up-Down	Yes	CSB272Y	CSB272B	CSB272R	146
	Forward-Reverse	Yes	CSB273Y	CSB273B	CSB273R	146
	On-Off^{[1 ]}	Yes	CSB274Y	CSB274B	CSB274R	10
	Start-Stop	No	CSB275Y	CSB275B	CSB275R	145
	Start-Stop^{[1 ]}	Yes	CSB276Y	CSB276B	CSB276R	10
	On-Off	No	CSB277Y	CSB277B	CSB277R	146
	Without Inserts	Yes	CSB293Y	CSB293B	CSB293R	146
	Without Inserts	Yes	CSB270Y	CSB270B	CSB270R	25
	Without Inserts	No	CSB271Y	CSB271B	CSB271R	25
	Without Inserts^{[1 ]}	Yes	CSB279Y	CSB279B	CSB279R	147
Single Speed (2NO)	Without Inserts	Yes	CSB290Y	CSB290B	CSB290R	100
Single Speed (2NO)	Up-Down	Yes	CSB292Y	CSB292B	CSB292R	100
Two Speed	Without Inserts	Yes	CSB280Y	CSB280B	CSB280R	150
Two Speed	Up-Down	Yes	CSB282Y	CSB282B	CSB282R	150

^{[1 ]} Maintained Contact * Add-A suffix to include a strain Relief

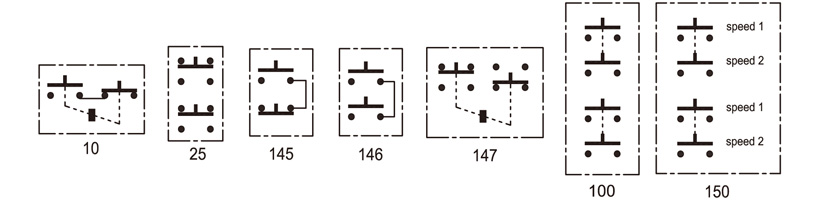

Contact Symbols
