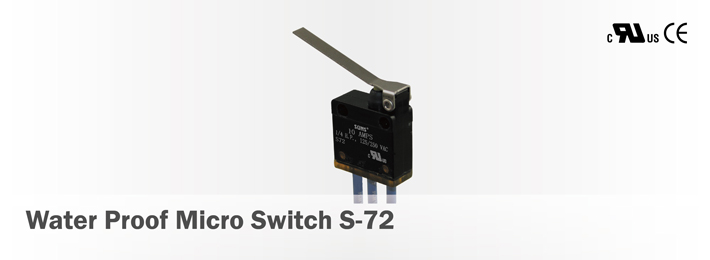

Water Proof Micro Switch S-72 |
Features: •Moistureproof
•3 contact arrangements
•Long-life coil spring mechanism
•Plunger type and pressing plate type available
•16 AWG cable applied
•Customized cable type available
|

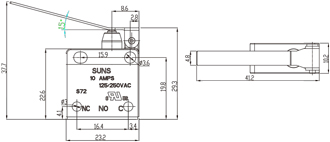

Installation dimensions:
![](/en/d/file/p/2015-11-19/未命名-1-(2).jpg) |
Specifications: Electrical
Electrical Rating 10A,125/250VAC
Temperature Rating -40℃-85℃
Flammability Rating UL94V-0
Service Life Mechanical 10,000,000 (operations)
Electical 5000,000 (operations)
Materials
Case Thermoplastic
Actuating Button Thermoplastic
Common erminals Silver-plated Brass
Moving Blade Silver-plated Brass
Spring Stainless steel
Auxiliary Actuators Cold-Roll steel sheet (Nickel plated)
Contacts Silver-cadmium oxide
Degree of Protection IP67
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Specifications
Electrical
Electrical Rating
|
10A,125/250VAC
|
Temperature Rating
|
-40℃-85℃
|
Flammability Rating
|
UL94V-0
|
Service Life
|
Mechanical 10,000,000 (operations)
Electical 5000,000 (operations)
|
Materials
Case
|
Thermoplastic
|
Actuating Button
|
Thermoplastic
|
Common erminals
|
Silver-plated Brass
|
Moving Blade
|
Silver-plated Brass
|
Spring
|
Stainless steel
|
Auxiliary Actuators
|
Cold-Roll steel sheet (Nickel plated)
|
Contacts
|
Silver-cadmium oxide
|

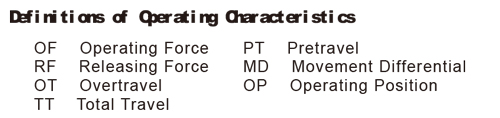

![djg.jpg](/en/d/file/p/2015-11-19/djg.jpg)
