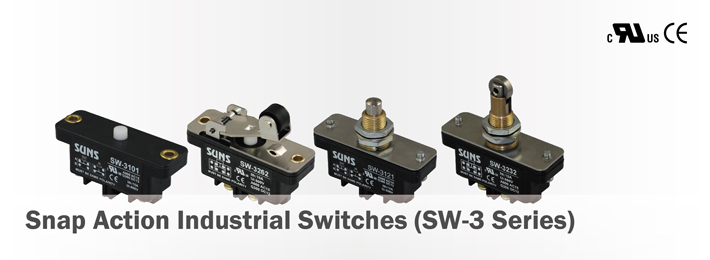

Snap Action Industrial Switches (SW-3 Series) |
Features: * Arc resistant fiber reinforced plastic enclosure
* High Power load switching capability up to 15 amperes
* Motor handling capacity of 1 horsepower at 240 vac.
* Long mechanical life of 10,000,000 cycles
* Double break contacts
* Available in SPDT (1NO/1NC) and DPDT (2NO/2NC) |

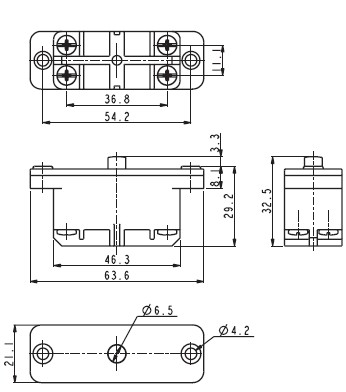

Installation dimensions:
![](/en/d/file/micro_switches/Snap Action Industrial Switches (SW-3 Series)/2013-05-04/1fbe5d94fc11e5dd59177e2bff48f458.jpg) |
Specifications: Operating Frequency: 0.01mm-1m/sec
Operating Frequency: Mechanical: 240ops/min
Electrical: 20 ops/min
Insulation Resistance: >100MΩ@500V DC
Contact Resistance: <15Ω

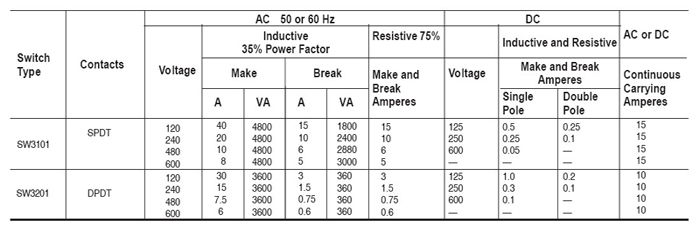

Rated Current/Voltage: 10A 1/2HP 125/250VAC
Dielectric Strength: 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life: Mechanically 1 x107(operations)
Electrically 5 x105 (operations)
Operating Temperature: -25~+80°C (-13~176°F)
Humidity: < 95%RH
Degree of Protection: IP00/IP63
|
