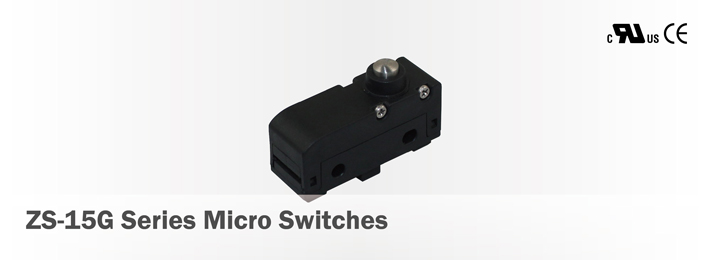

ZS-15G Series Micro Switches |
Features: Specifications Operating Speed 0.01mm-1m/sec Operating Frequency |

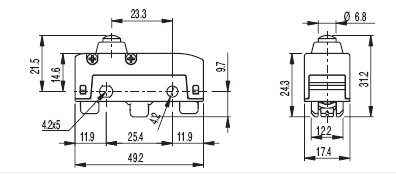

Installation dimensions:
![](/en/d/file/p/2016-02-23/ZS-15G-1.jpg) |
Specifications: Operating Speed 0.01mm-1m/sec
Operating Frequency Mechanical: 240ops/min
Electrical: 20 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <15mΩ
Rated Current/Voltage 15A 125/250/480VAC;3/4HP/125VAC
1.5HP/250VAC (UL file E321073)
Dielectric Strength 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non- current carrying parts
Service Life Mechanically 1 x107 (operations)
Electrically 5 x105 (operations)
Operating Temperature -40~+105oC (-40~221oF)
Humidity 95%RH
Degree of Protection IP67
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Specifications
Operating Speed
|
0.01mm-1m/sec
|
Operating Frequency
|
Mechanical: 240ops/min
Electrical: 20 ops/min
|
Insulation Resistance
|
>100mW@500V DC
|
Contact Resistance
|
<15mW
|
Rated Current/Voltage
|
15A 125/250/480VAC;3/4HP/125VAC
1.5HP/250VAC (UL file E321073)
|
Dielectric Strength
|
1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non- current carrying parts
|
Service Life
|
Mechanically 1.0 x107 (operations)
Electrically 5 x105 (operations)
|
Operating Temperature
|
-40~+105oC (-40~221oF)
|
Humidity
|
<95%RH
|
Degree of Protection
|
IP67
|

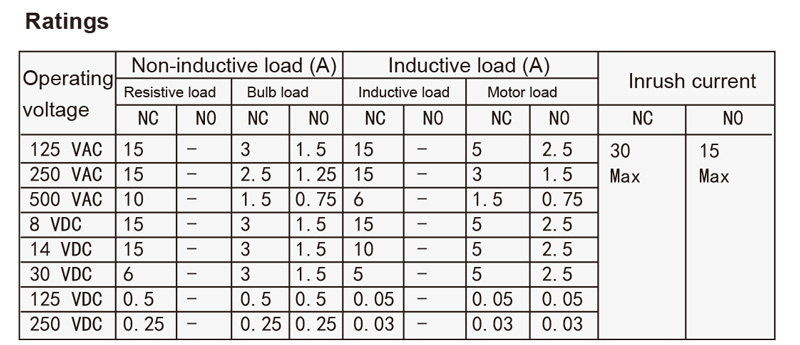

![Ratings.jpg](/en/d/file/product.html/micro_switches/ZS-15G_series_micro_switches/2015-11-04/bde8d0923ab1b49b4d82c61bfda358fa.jpg)

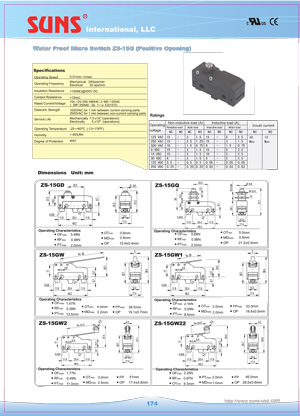

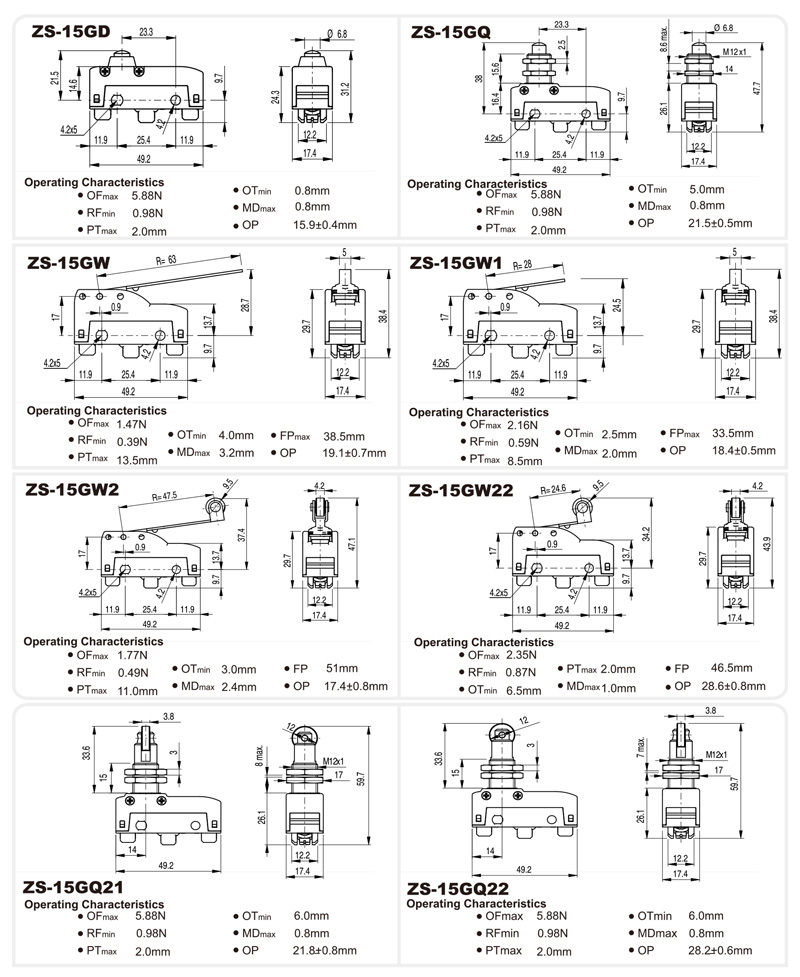

![e174.jpg](/en/d/file/product.html/micro_switches/ZS-15G_series_micro_switches/2015-11-04/173ef9b8e946aadb8bd24030ff728f21.jpg)
