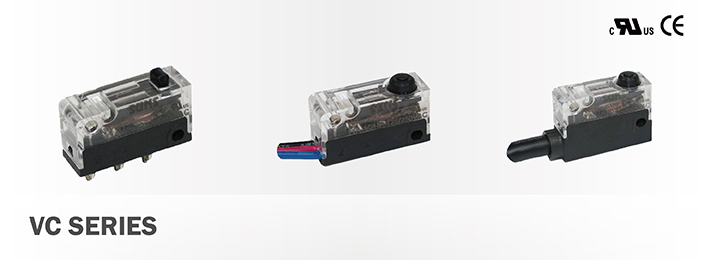

VC Miniature Basic Switches

Features: *Industry standard design with 11A ratings *Choose from a variety of levers, terminals *Positive opening and self-cleaning contacts *Long service life of 10,000,000 operations *RoHS Compliant *IP67 rated model available

Installation dimensions:

Specifications: Operating Speed: 0.1mm to 1m/s Operating Frequency: Mechanical: 600ops/min Electrical: 60ops/min Insulation Resistance: 100MΩ min.(at 500VDC) Contact Resistance: 30mΩ max(initial values) Rated Voltage/Current 0.1A,3A,5A,11A 1/2HP 125/250VAC Dielectric Strength: 1000VAC,50/60Hz for 1 min between terminals of the same polarity 2500VAC,50/60Hz for 1 min between current-carrying metal parts and ground,and between each teminal and non-current-carrying metal parts Service Life: Mechanically 1×107 (operations) Electrically  1×105 (operations) Operating Temperature: standard -40~85℃ high temperature -40~150℃ Degree of Protection: IP40; IP60 for sealed version; IP67 for cable version

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:VC11GG-C View Details	TYPE:VC11GG-P View Details	TYPE:VC11GG-R View Details
TYPE:VC11GG-U View Details
