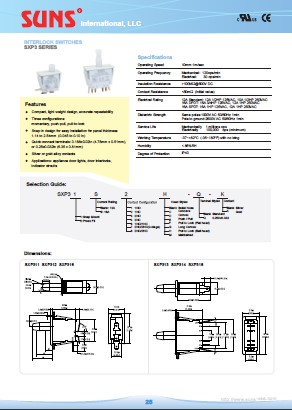

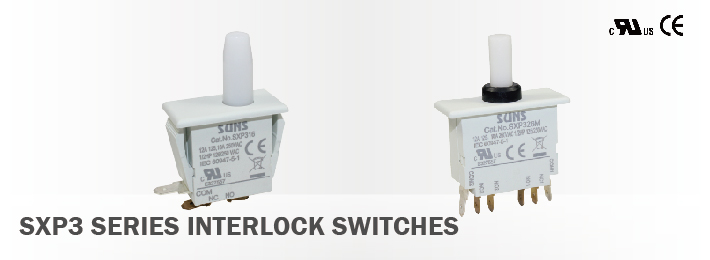

SXP3 Micro Switches Series

Features: *Compact, light weight design, accurate repeatability *Three configurations: momentary, push-pull, pull-to-lock *Snap-in design for easy installation for panel thickness 1.14 to 2.54mm (0.045 to 0.10 in) *Quick-connect terminals: 0.188x0.02in (4.78mm x 0.51mm), or 0.25x0.032in (6.35 x 0.81mm) *Silver or gold-alloy contacts *Applications: appliance door lights, door interlocks, indicator circuits

Installation dimensions:

Specifications: Operating speed:　　　　10mm-1m/sec Operating frequency:　　Mechanically:120 ops/min，electrically:30 ops/min Rated Current/Voltage:　　12A Standard: 12A 1/2HP 125VAC, 10A 1/2HP 250VAC 16A 125/250VAC,4A 24VDC 3/4HP 125VAC 1-1/2HP 250VAC Service:　　Mechanically:1,000,000ops;electrically1,000,000ops Operating Temperature:　　　-20~80℃without ice weight: 12-14g Degree of Protection:　　　　IP40

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SXP316 View Details	TYPE:SXP316C View Details	TYPE:SXP316D View Details
TYPE:SXP318 View Details	TYPE:SXP318E View Details	TYPE:SXP318F View Details
TYPE:SXP318H View Details	TYPE:SXP328M View Details
