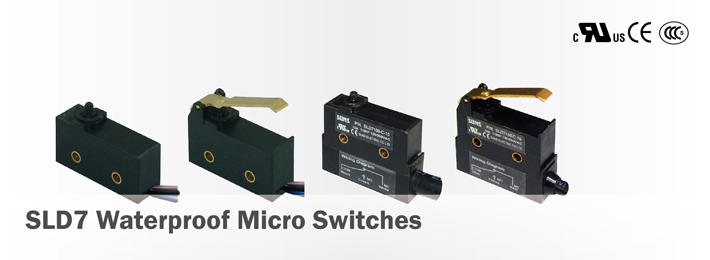

SLD7 Waterproof Micro Switches

Features: *General

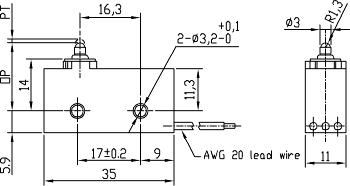

Installation dimensions:

Specifications: impulsion IEC60028-2-27:1987 libration，sinusoidal IEC60028-2-26:1995 Operating Speed: 0.01mm-1m/sec Operating Frequency: Mechanical: 600ops/min Electrical: 60ops/min Insulation Resistance: >100mΩ@500V DC Contact Resistance: <25mΩ max Rated Voltage: 250VAC Rated Current: 10A Dielectric Strength: 1000VACfor 1 min between current carring parts 2500VAC for 1 min between non-current carrying parts Service Life: Mechanically 1×10,000,000 (operations) Electrically 5×100,000 (operations) Operating Temperature: -40~120℃ without formation of ice Degree of Protection: IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

For example：SLD7140	-C
Enclouse type and outside head type	Cable Option

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SLD7100 View Details	TYPE:SLD7100-C View Details	TYPE:SLD7140 View Details
TYPE:SLD7140-C View Details	TYPE:SLD7112 View Details
