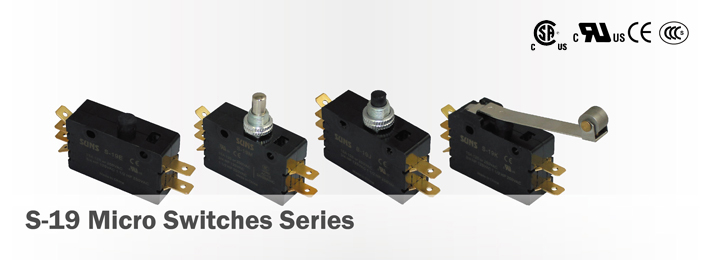

S-19/S-20 Micro Switches Series

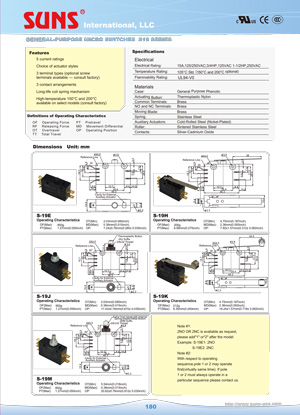

Features: * 5 current ratings * Choice of actuator styles * 3 terminal types (optional screw terminals available — consult factory) * 3 contact arrangements * Long-life coil spring mechanism * High-temperature 150°C and 200°C * available on select models (consult factory)	Installation dimensions:
Specifications: Ellectrical Rating:15A,125/250VAC;3/4HP,125VAC 1-1/2HP,250VAC Temperature Rating: 105°C Std. (150°C and 200°C optional) Flammability Rating: UL94HB

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

for example：S19	K
explained:Enclouse Type	outside head type

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:S20-K View Details	TYPE:S20-H View Details	TYPE:S20-M View Details
TYPE:S20-J View Details	TYPE:S20-E View Details	TYPE:S19-K View Details
TYPE:S19-H View Details	TYPE:S19-M View Details	TYPE:S19-J View Details
TYPE:S19-E View Details
