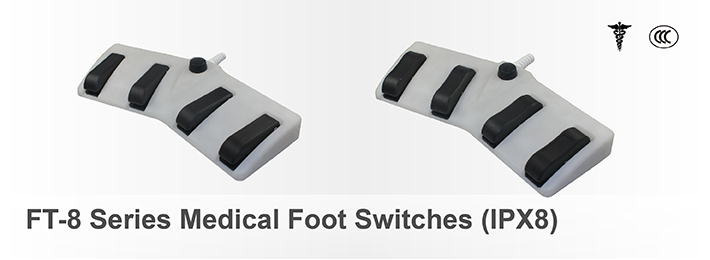

FT-8 Series Medical Foot Switches(IPX8)

Features: •Robust glass fiber reinforced plastic •Rocker style available for multiple functions •Wireless version available for -W model with base •Wire and connector can be connected according to customer's requirements •USB optional available •Multiple Pedal colors available •Compact design

Installation dimensions:

Specifications: Operating Frequency 60 ops/min Insulation Resistance >100mΩ@500V DC Contact Resistance <25mΩ(initial) Rated Current/Voltage 5A 125/250VAC Inrush Current Complies with IEC947-5-1: AC15/DC13 Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life 1, 000, 000(operations) Operating Temperature -30~+80oC (-22~176oF) Degree of Protection IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FT-84-B View Details	TYPE:FT-84R-B View Details	TYPE:FT-84-B-H View Details
TYPE:FT-84R-B-H View Details
