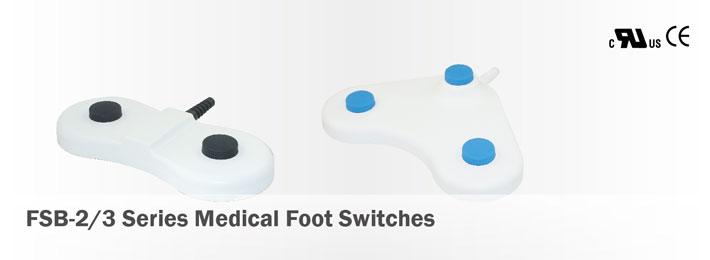

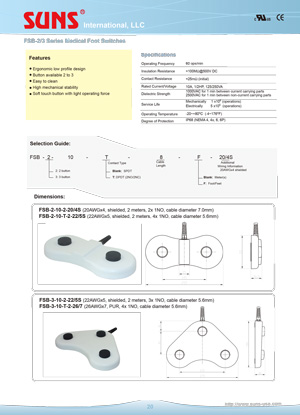

FSB-2/3 Series Medical Foot Switches |
Features: •Ergonomic low profile design
•Button available 2 to 3
•Easy to clean
•High mechanical stability
•Soft touch button with light operating force
|

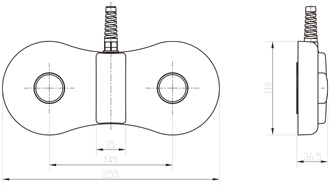

Installation dimensions:
![](/en/d/file/product.html/medical_foot_switches/FSB-23_series_medical_foot_switches/2015-10-30/23be309f425da4ae7675bc583889d1ef.jpg) |
Specifications: Operating Frequency 60 ops/min
Insulation Resistance >100mΩ@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage 10A, 1/2HP, 125/250VA
Dielectric Strength 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature -20~+80oC (-4~176oF)
Degree of Protection IPX8 (NEMA 4, 4x, 6, 6P)
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Operating Frequency
|
60 ops/min
|
Insulation Resistance
|
>100mW@500V DC
|
Contact Resistance
|
<25mW (initial)
|
Rated Current/Voltage
|
10A, 1/2HP, 125/250VA
|
Dielectric Strength
|
1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
|
Service Life
|
Mechanically 1 x106 (operations)
Electrically 5 x105 (operations)
|
Operating Temperature
|
-20~+80oC (-4~176oF)
|
Degree of Protection
|
IPX8 (NEMA 4, 4x, 6, 6P)
|
