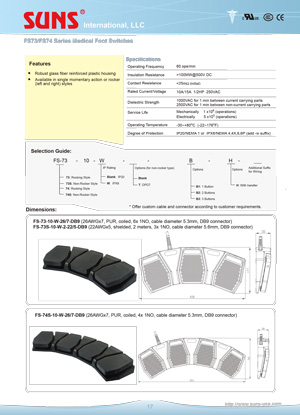

FS73/FS74 Series Medical Foot Switches |
Features: •Robust glass fiber reinforced plastic housing
•Available in single momentary action or rocker (left and right) styles
|

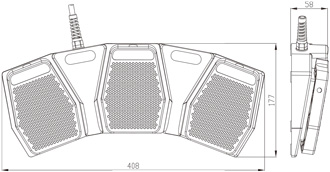

Installation dimensions:
![](/en/d/file/product.html/medical_foot_switches/FS73-FS74_series_medical_foot_switches/2015-10-30/4ead19cfbae0245e714c8ec51b312a92.jpg) |
Specifications: Operating Frequency 60 ops/min
Insulation Resistance >100mw@500V DC
Contact Resistance <25mΩ(initial)
Rated Current/Voltage 10A/15A 1/2HP 250VAC
Dielectric Strength 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature -30~+80oC (-22~176oF)
Degree of Protection IP20/NEMA 1 or IPX8/NEMA 4,4X,6,6P (add -w suffix)
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
Operating Frequency
|
60 ops/min
|
Insulation Resistance
|
>100mw@500V DC
|
Contact Resistance
|
<25mW (initial)
|
Rated Current/Voltage
|
10A/15A 1/2HP 250VAC
|
Dielectric Strength
|
1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
|
Service Life
|
1 x106 (operations)
|
Operating Temperature
|
-30~+80oC (-22~176oF)
|
Degree of Protection
|
IP20/NEMA 1 or IPX8/NEMA 4,4X,6,6P (add -w suffix)
|
