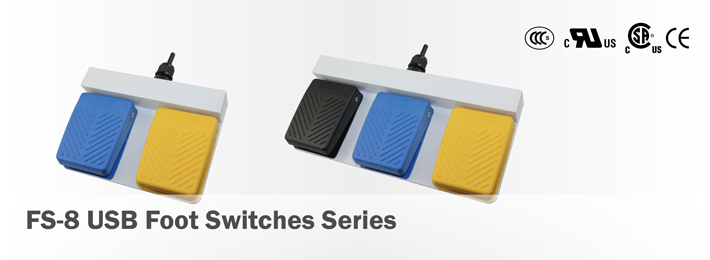

FS-8 USB Foot Switches Series

Features: *Available in Single,Twin&3-Pedals (If more than 3pedal needs,two foot swithes can be used) *Pre-program key functions on the foot pedal by software *Only requires a USB interface *Compatible with Windows OS2000/XP/Vista/7 *Avaiable with medical grade waterproof pedals *Comes with CD-Rom for setting pedal(s) functions	Installation dimensions:
Specifications: Operating Speed: 60ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: 1.0×106 (operations) Operating Temperature: -30~+80(-22~+176) Degree of Protection: IP20/NEMA 1 or IPX8/NEMA 4,4X,6,6P

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

For example：FS81	-SP	-M	-T	-P	Twin	8-18/3
	Switch Type	Enclosure Type	Contact Type	option	option	Wring Information
	SP:Snap action	blank:Fiber renforced Plastic	Blank	K:Gold plated contact	blank:single pedal	Wiring information(standard with 2m cable)
	SL:Slow action	M:Die cast zinc			n-pedal(n=2...6)
	10:Snap action(IP20)				Twin:2-pedal



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FS-81-10-USB View Details

TYPE:FS-81-10(twin) View Details

TYPE:FS-81-10(3-pedal) View Details
