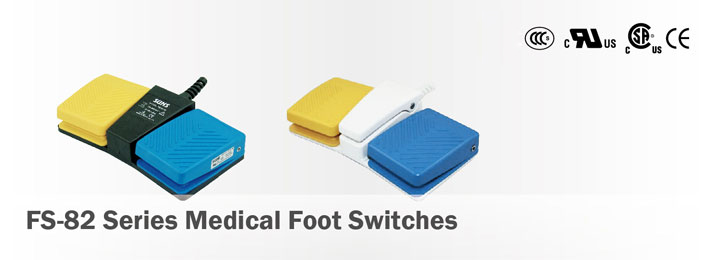

FS-82 Series Medical Foot Switches

Features: * Robust Glass Fiber Reinforced Plastics housing * Pedal available in plastic and aluminum die cast metal * Choice of different type of contact blocks * Galvanically separated contacts(for FS81-SP only) * Positive Opening of NC contacts(for FS81-SP only) * UL/cUL approved (E216958)

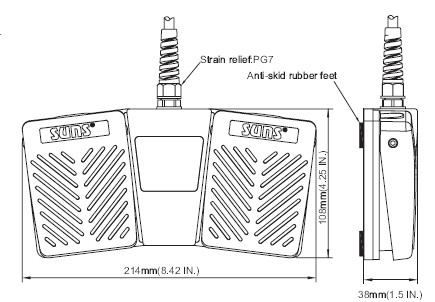

Installation dimensions:

Specifications: Operating Speed: 60ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage 10A/300V AC Inrush Current: Complies with IEC947-5-1:AC15/DC 13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: 1,000,000 (operations) Operating Temperature: -30~+80(-22~+176) Degree of Protection: IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



For example：FS82	-	-SP	-T	-M	-P
		Switch Type	Contact Type	Enclosure Type	options
		10:10A snap action (IP20)	Blank:SPDT	blank:Fiber reinforced plastic	P:Supplied with 3 prong series plug
		15:15A snap action (IP20)	T:DPDT(2NO/2NC)	M:Die cast Alumnum	K:gold plated contact
		SP:10A snap action(IPx8)	S:DPDT(2-stage)		G:With protection guard
		SL:10A slow action (IPx8)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FS-82-SP-M-B100M View Details

TYPE:FS-82 View Details
