FS-81 Medical Foot Switches Series (IP×8)

Features: * Robust Glass Fiber Reinforced Plastics or aluminum die cast body * Galvanically separated contacts(for FS81-SP only) * Positive Opening of NC contacts(for FS81-SP only) * UL/cUL approved (E216958)

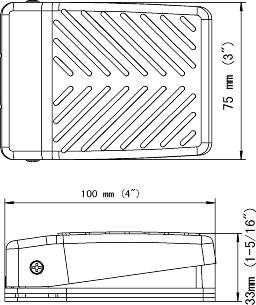

Installation dimensions:

Specifications: Operating Speed: 60ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage: Ith:10A Ui:300VAC UL Rating:A300/AC15 CCC Rating:10A/250VAC IEC60601(TUV):5A/25VAC Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: 1,000,000 (operations) Operating Temperature: -30~+80(-22~+176) Degree of Protection: IPX8(NEMA 4,4X,6X6P)HR>

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

For example：FS81	-SP	-M	-T	-P	Twin	-8	18/3
	Switch Type	Enclosure Type	Contact Type	option	option	cable length	Wring Information
	SP:Snap action	blank:Fiber renforced Plastic	Blank:SPDT	P:supplied with 3 proong series plug	Twin:2-pedal		e.g. 8ft 18AWGX3
	SL:Slow action	M:Die cast zinc	T:DPDT(2NO/2NC)	K:Gold plated contact	n-pedal(n=2...6)
			S:DPDT(2-stage)		blank:single
