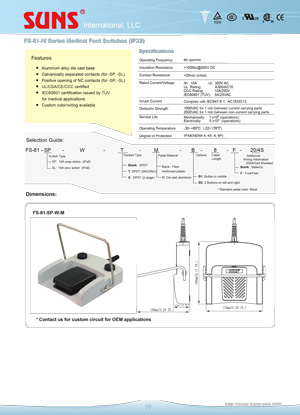

FS-81-W Series Medical Foot Switches(IPx8)

Features: •Aluminum alloy die cast base •Galvanically separated contacts (for -SP, -SL) •Positive opening of NC contacts (for -SP, -SL) •UL/CSA/CE/CCC certified •IEC60601 certification issued by TUV for medical applications •Custom color/wiring available

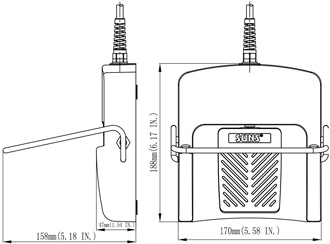

Installation dimensions:

Specifications: Operating Frequency 60 ops/min Insulation Resistance >100mΩ@500V DC Contact Resistance <25mΩ(initial) Rated Current/Voltage Ith: 10A Ui: 300V AC UL Rating: A300/AC15 CCC Rating: 10A/250V IEC60601 (TUV): 5A/25VAC Inrush Current Complies with IEC947-5-1: AC15/DC13 Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life 1,000,000 (operations) Operating Temperature -30~+80oC (-22~176oF) Degree of Protection IPX8(NEMA 4, 4X, 6, 6P)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.





TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FS-81-W View Details

TYPE:FS-81-SP-T-W-B3-2 View Details
