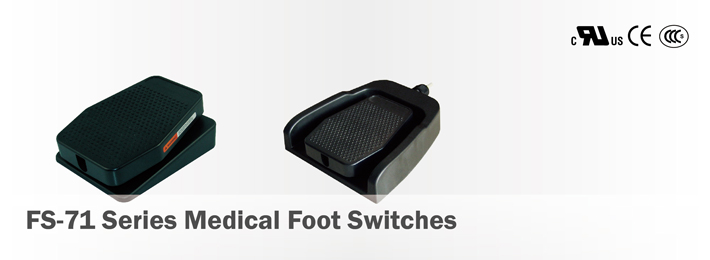

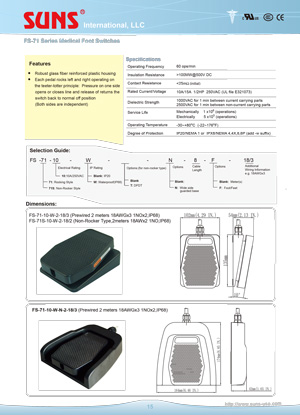

FS-71 Series Medical Foot Switches

Features: * Robust Glass Fiber Reinforced Plastics housing * Pedal available in IP20 and IPX8 * Each footboard may control triggers * Uses in the medical service and industrial field

Installation dimensions:

Specifications: Operating Speed: 60ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage 10A/15A 1/2HP 250VAC Inrush Current Complies with IEC60947-5-1:AC15/DC 13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: 1,000,000 (operations) Operating Temperature: -30~+80(-22~+176) Degree of Protection: IP20/NEMA 1 OR IPX8/NEMA 4,4X,6,6P(add-w suffix)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

for example：FS71	-	10	-W	-K	-N	-8	-F	-18/3
		Electrica Rated	BLANK:IP20	K:Gold plated contact	Blank	cable length		additional wiring information
		10:10A/250VAC	W:IP68		N:Wide side guarded base		Blank:menter(s)	eg:18AWGX3
		15:15A/250VAC					F:Foot/Feet

*can connect the ordinary electric wire or the spring line and the plug according to the customer request

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FS-71-10-W View Details

TYPE:FS-71-10N-W View Details
