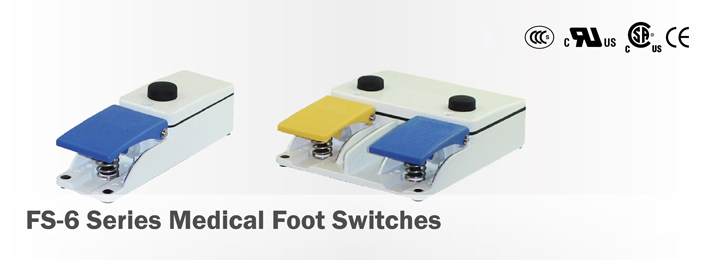

FS-6 Medical Foot Switches

Features: * Robust aluminum alloy die cast body * Choice of different type of contact blocks * Water-proof to IP65(IP67 available on special request) * Galvanically separated contacts * Screw terminals with self-lifting clamps for easy wirting * Positive Opening of NC contacts * Safety reset option available * UL/CUL approval(E216958) * Threaded Hole available in:PG 13.5,m20x1.5 and 1/2NPT

Installation dimensions:

Specifications: Operating Frequency: 60 ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage 10A/600V AC A600/AC15 Q300/DC13 Inrush Current Complies with IEC947-5-1:AC15/DC 13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: 1.0×106(operations) Operating Temperature:-30~+80℃(-22~176°F) Degree of Protection: IPX8

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

For example：FS-61	G	SP	-S	-D	-C
61:siingle pedal	Guarding options	Contact Block Type	option #2	option	Conduit Type
62:dual pedal	blank:No Guarded	SP: 1NO/1NC snap action	blank:SPDT	K: Gold Plated Contacts	A: 3/4 NPT
	G: Fully Guarded	SL:BBMslow action 1NO/1NC	S: 2NO/2NC 2 stages		B: PG13.5
		SL1:MBBslow action1NO/1NC	T:DPDT		C: M20x1.5
		K : 1K  Potentiometer
		5K:5K  Potentiometer
		10K:10K  Potentiometer

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

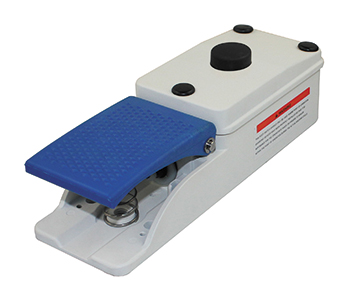

TYPE:FS-61(medical white) View Details

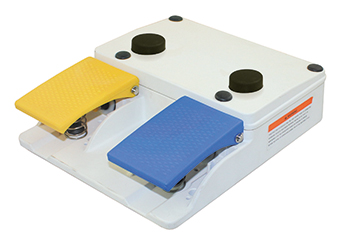

TYPE:FS-62(medical white) View Details
