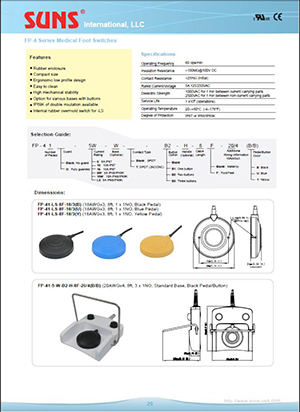

FP-4 Series Medical Foot Switches

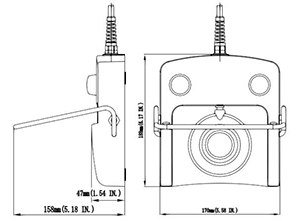

Features: *Rubber enclosure *Compact size *Ergonomic low profile design *Easy to clean *High mechanical stability *Option for various bases with buttons *IP69K of double insulation available *Internal rubber overmold switch for -LS	Installation dimensions:
Specifications: Operating Frequency 60 ops/min Insulation Resistance >100MW@500V DC Contact Resistance <25mW (initial) Rated Current/Voltage 5A 125/250VAC Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life 1,000,000 (operations) Operating Temperature 20~+80oC (-4~176oF) Degree of Protection IP67 or IP68/IP69K

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FP-41-LS-8F View Details	TYPE:FP-41-5-W-B2-H-8F View Details	TYPE:FP-41-5-W-B3-H-8F-L View Details
TYPE:FP-42-5-W-B1-H-8F-S View Details	TYPE:FP-43-5-W-B2-2(B/B) View Details
