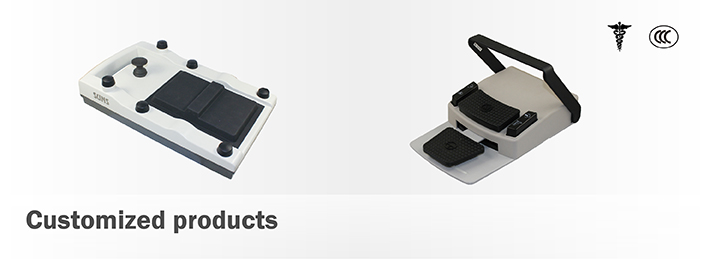

Features: *High strength alloy plastic
*Use the central pedal to control zoom and focus
*The lever is used for microscopical positioning
*6 additional buttons that can be specified
*Protection level IP X8
*Easy to clean
*Custom label
*RAL color is available |

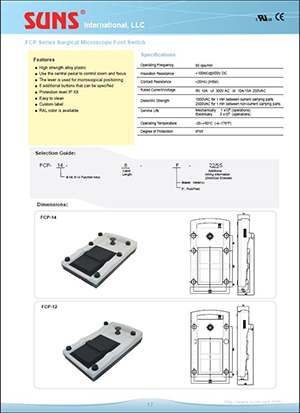

Installation dimensions:
![](/en/d/file/p/2021-12-10/FCP-14 尺寸图.JPG.jpg) |
Specifications: Operating Frequency 60 ops/min
Insulation Resistance >100MW@500V DC
Contact Resistance <25mW (initial)
Rated Current/Voltage Ith: 10A Ui: 300V AC or 10A/15A 250VAC
Dielectric Strength 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life 1,000,000 (operations)
Operating Temperature 20~+80oC (-4~176oF)
Degree of Protection IPX8
|
