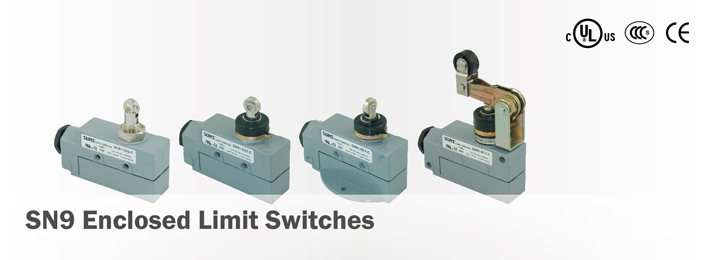

SN9 Enclosed Limit Switches |
Features: *Compact and rugged Aluminum housing
*Large wiring enclosure
*High precision switch
*High repeatability of switching point
*Long service life
*Large breaking power
*Conduit opening available in:
M20: suffix -C
1/2NPT: suffix -A |

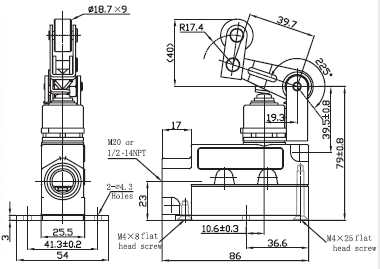

Installation dimensions:
![](/en/d/file/p/2016-05-16/SN91-N63-V-02.png) |
Specifications: Operating Speed: 0.02mm-0.5m/sec
Operating Frequency: Mechanical: 120ops/min Electrical: 20ops/min
Insulation Resistance: >100mΩ@500V DC
Contact Resistance: <25mΩ(initial value)
Rated Current/Voltage:
SN91:15A,125/250/480VAC;0.75HP/125VAC or 1.5HP/250VAC
SN92:20A,125/250/480VAC;1.5HP/125VAC,2HP/250VAC
SN93:25A,125/250/480VAC;1.5HP/125VAC,2HP/250VAC
Dielectric Strength: 1000VAC for 1 min between current carrying parts
2500VAC for 1 min between non-current carrying parts
Service Life: Mechanically 10,000,000, Electrically 500,000
Operating Temperature: -25 ~ +80°(-13~+176°F)
Humidity: <95%RH
Degree of Protection: IP66/IP60
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
SN91 |
Q |
-62 |
V |
A |
Enclouse Type |
Head Enclouse |
Head Type |
Install Form |
Conduits |
SN91 |
Q:No |
11:Panel mount plunger |
Blank:Side install |
A:1/2NPT |
|
N:With enclouse |
12:Roller panel mount plunger |
V:Bottom install |
B:PG13.5 |
|
|
22:Crosswise roller plunger |
|
C:M20 |
|
|
62:Roller arm lever |
|
|
|
|
63:Unidirectional movement roller lever |
|
|
|
|

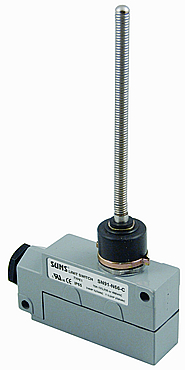

00:Coil spring |
|
|
