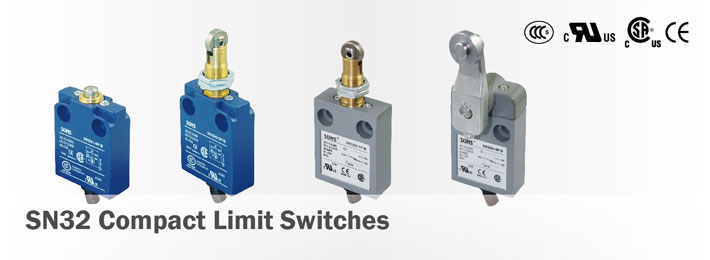

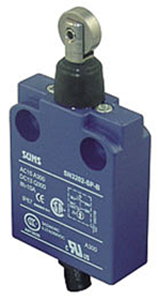

SN32 Compact Limit Switches

Features: *Easy to install *Golbal general standard *M12 aviation connector available

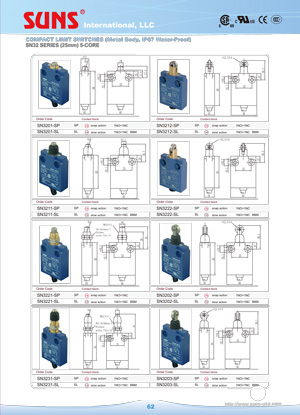

Installation dimensions:

Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A/300V AC (EN60947-5-1) Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A300/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min between non-continuous terminals 　　　　　　　2500VAC for 1 min between each terminal and ground Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 Operating Temperature:　-25~85℃without formation of ice Humidity:　　　　 <95%RH Degree of protection:　 IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



for example：SN32	04	-SP	-C	-2	-H
Style	Head style	Contact style	Cable exit	Cable length	Option

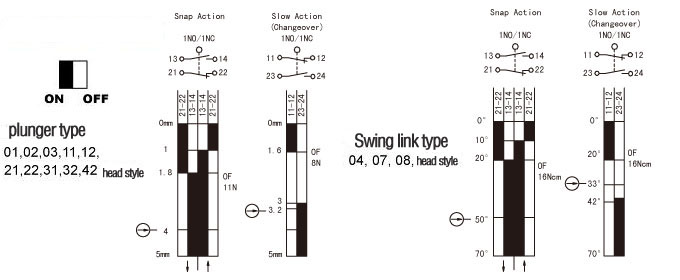

SN32 single conduit		SP:snap action 1NO/1NC	A:cable side exit	2：2 meter cable	banlk：general
		SL:BBM slow action 1NO/1NC	B:cable button exit		H:90°turns
			C:M12 connector side    exit 4 pin
			D:M12 connector bottom    exit 4 pin
			E:M12 connector side    exit 5 pin
			F:M12 connector bottom    exit 5 pin





TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SN3204-S(5-CORE) View Details	TYPE:SN3211(5-CORE) View Details	TYPE:SN3205(5-CORE) View Details
TYPE:SN3201(5-CORE) View Details	TYPE:SN3222(5-CORE) View Details	TYPE:SN3208(5-CORE) View Details
TYPE:SN3207(5-CORE) View Details	TYPE:SN3204(5-CORE) View Details	TYPE:SN3231(5-CORE) View Details
TYPE:SN3242(5-CORE) View Details	TYPE:SN3232(5-CORE) View Details	TYPE:SN3203(CORE) View Details
TYPE:SN3202(5-CORE) View Details	TYPE:SN3212(5-CORE) View Details	TYPE:SN3221(5-CORE) View Details
TYPE:SN3201(H) View Details	TYPE:SN3212(H) View Details	TYPE:SN3211(H) View Details
TYPE:SN3222(H) View Details	TYPE:SN3202(H) View Details	TYPE:SN3203(H) View Details
TYPE:SN3221(H) View Details	TYPE:SN3204(H) View Details	TYPE:SN3232(H) View Details
TYPE:SN3242(H) View Details	TYPE:SN3266(H) View Details	TYPE:SN3269(H) View Details
TYPE:SN3266(5-CORE) View Details
