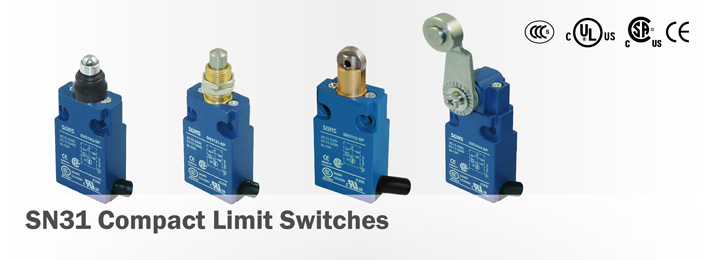

SN31 Compact Limit Switches

Features: *Easy to install *Golbal general standard *M12 aviation connector available

Installation dimensions:

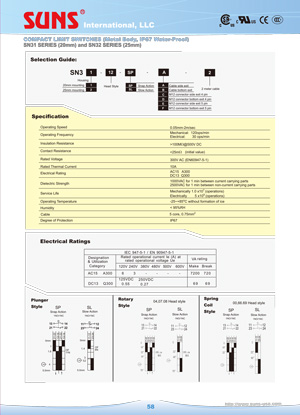

Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A/300V AC (EN60947-5-1) Electrical Rating:　　UL/cUL Listed(E216958) for AC15 A300/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min between non-continuous terminals 　　　　　　　2500VAC for 1 min between each terminal and ground Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 Operating Temperature:　-25~85℃without formation of ice Humidity:　　　　 <95%RH Cable: 5 core,0.75mm2 Degree of protection:　 IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.



for example：SN31	04	-SP	-C	-2	-H
Style	Head style	Contact style	Cable exit	Cable length	Option
SN31 20mm mounting		SP:snap action 1NO/1NC	A:cable side exit	2：2 meter cable	banlk：general
		SL:BBM slow action 1NO/1NC	B:cable button exit		H:90°turns
			C:M12connector side exit 4Needle
			D:M12 connector  buttom exit 4 needle
			E:M12connector side exit 5 pin
			F:M12connector buttom exit 5 pin



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

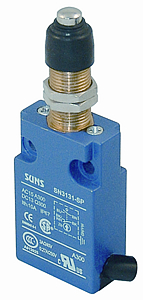

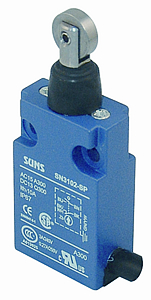

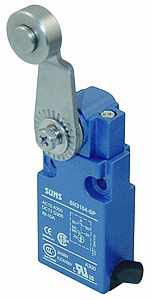

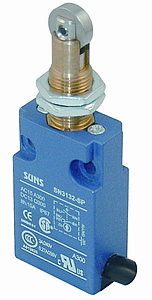

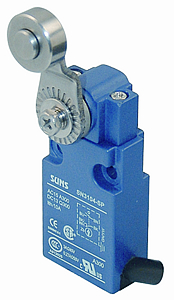

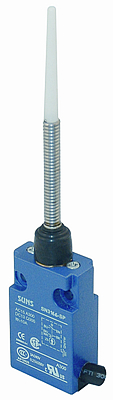

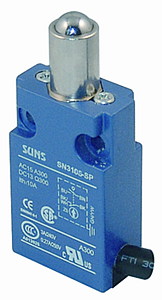

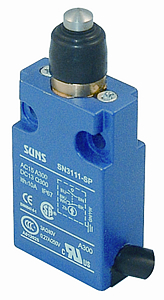

TYPE:SN3111 G View Details	TYPE:SN3111 View Details	TYPE:SN3101 View Details

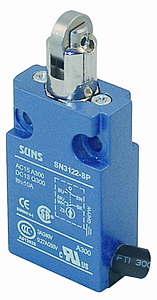

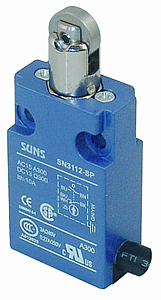

TYPE:SN3122 View Details	TYPE:SN3112 View Details	TYPE:SN3121 View Details

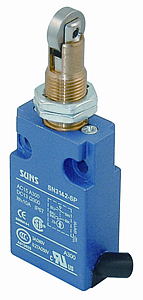

TYPE:SN3132 View Details	TYPE:SN3142 View Details	TYPE:SN3131 View Details
TYPE:SN3102 View Details	TYPE:SN3103 View Details	TYPE:SN3104-S View Details
TYPE:SN3108 View Details	TYPE:SN3104 View Details	TYPE:SN3107 View Details
TYPE:SN3166 View Details
