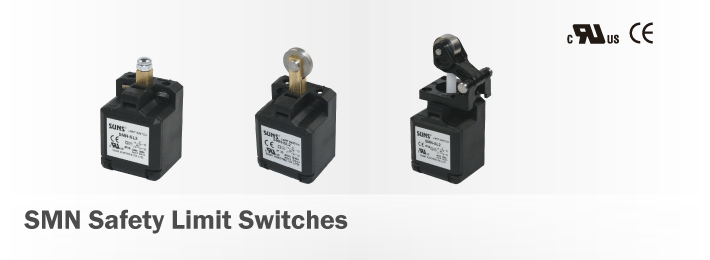

SMN Safety Limit Switches

Features: *Glass fiber reinforced plastic body *Easily interchangeable contact block *Galvanically separated contacts *Screw terminals with self-lifting clamps for easy wiring *Positive Opening of NC contacts *4 x 90°actuator positions *Cable entry: Rectangle 8.5 x 3.5 mm *Conform to EN 50047 standard

Installation dimensions:

Specifications: Operating Speed: 0.05mm-2m/sec Operating Frequency:　Mechanical:120ops/min Electrical: 30ops/min Insulation Resistance:　>100MΩ @ 500V DC Contact Resistance:　　<25mΩ Rated Current/Voltage:　10A/600V AC (EN60947-5-1) Electrical Rating: AC15 A600/ DC13 Q300 Dielectric Strength:　1000VAC for 1 min between non-continuous terminals 　　　　　　　2500VAC for 1 min between each terminal and ground Service Life:　　　 Mechanically 10,000,000, Electrically 500,000 Operating Temperature:　-25~80℃(-13~176°F) without formation of ice Humidity:　　　　 <95%RH Weight：　　　 30~90g Degree of protection:　 IP30

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

SMN41	-SP				(11A)
Body styles	SP	Snap Action	1NO/1NC		Head Styles
	SL	BBM   Slow Action	1NO/1NC
	SL2	Slow Action	2NC
	SL3	Slow Action	2NO

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SMN-SP(11A) View Details	TYPE:SMN-SP(11P) View Details	TYPE:SMN-SP(11B) View Details
TYPE:SMN-SP(12) View Details
