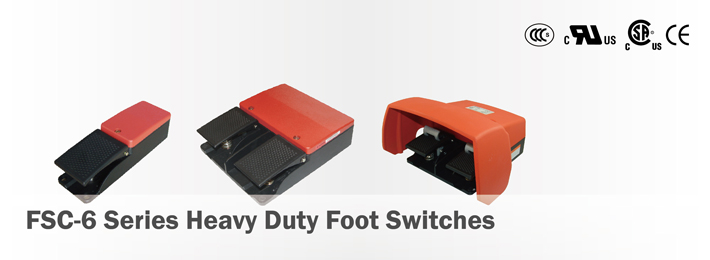

FSC-6 Series Heavy Duty Foot Switches

Features: * Robust aluminum alloy die cast body *Three special styles: -High current carrying capacity -AC variable speed control -Push-on/push-off * UL/CUL approval(E321073) * Threaded Hole available in:PG 13.5,m20x1.5 and 1/2NPT

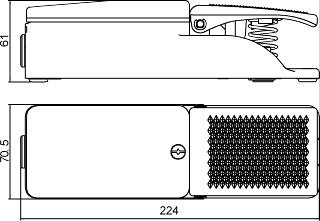

Installation dimensions:

Specifications: Operating Frequency: 60 ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage various(see selection guide) Inrush Current Complies with IEC947-5-1:AC15/DC 13 Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: Mechanically 1.0×106(operations) Electrically 5×105 (operations) Operating Temperature:-30~+80℃(-22~176°F) Degree of Protection: IP65,NEMA Type 2,4,13(IP68,NEMA type 6,6P available on request)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

For example：FS-61	-G	-08	-A	-S	-K	-A
61: Single pedal	Guarding options	Contact Block Type	Special Features	Switch Configuration	option	Conduit Type
62:DUAL PEDALS	blank:No Guarded	08:8a/125,4a/250vac	blank	blank:SPDT	blank	A: 1/2NPT
	G: Fully Guarded	10:10A/125,6/250V	A: Anti-tripped	T:DPDT	K:Gold plated contactcs	B:PG13.5
		20:20A 125/250/480V	D:Push-on/push-off	S: 2 stages		C:M20x1.5
		25:25A 125/250/480V	V:AC variable speed

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FSC-61 View Details	TYPE:FSC-61G View Details	TYPE:FSC-62 View Details
TYPE:FSC-62G View Details
