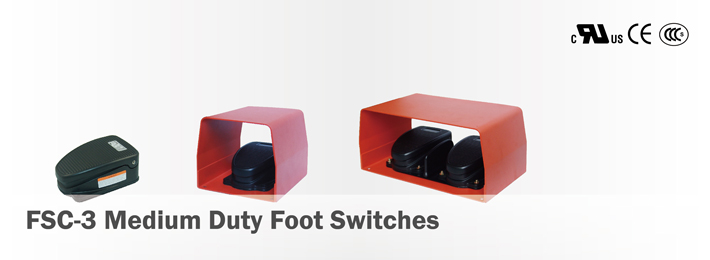

FSC-3 Medium Duty Foot Switches

Features: * Robust aluminum alloy die cast body * Four switch ratings available: 10A:1/2HP 125/250VAC 15A:3/4HP 125VAC, 1-1/2HP 250VAC 20A:1-1/2HP 125VAC, 2HP 250VAC 25A:1-1/2HP 125VAC, 2HP 250VAC * UL/CSA/CE/CCC certified * Custom color/wiring available

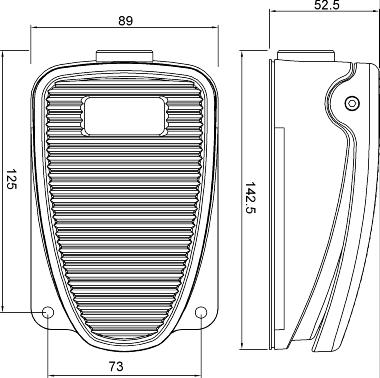

Installation dimensions:

Specifications: Operating Frequency: 60 ops/min Insulation Resistance: >100mΩ @500V DC Contact Resistance: <25mΩ (initial) Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: Mechanically 1 x106 (operations) Electrically 5 x105 (operations) Operating Temperature: -30~+80oC (-22~176oF) Degree of Protection: IP20/IP65

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

for example：FSC-3	-G	-15	-D	-T	-P	-A	-8	-F	-18/3
	Gurd Options	Electrical Rating	Options	Contact Type	Options	Conduit Type	Cable Length		Additional Wiring information 18AWGx3
31: Single	Blank: No guard	10:10A	Blank:	Blank:SPDT	Blank	A:1/2NPT		Blank:Meter(S)
32: 2- Pedal	G: With guard	15:15A	D: Maintained	T:DPDT(2NO/2NC)	P: Supplied witch 3 prong series plug	C: M20		F: Foot/Feet
		20:20A		S:DPDT(2-stage)
		25:25A



TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FSC-3 View Details	TYPE:FSC-3-20(TWIN) View Details	TYPE:FSC-3G-20(TWIN) View Details
TYPE:FSC-3G-20 View Details
