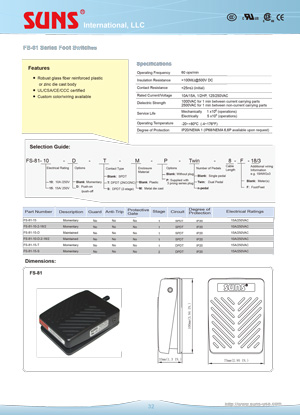

FS-8 Foot Switches Series

Features: * Robust Glass Fiber Reinforced Plastics or aluminum die cast body *UL/CSA/CE/CCC Certified *custom color/wiring available

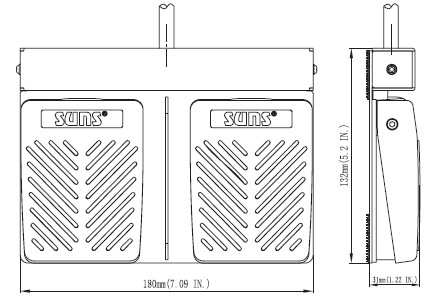

Installation dimensions:

Specifications: Operating Speed: 60ops/min Insulation Resistance: >100mΩ@500VDC Contact Resistance: <25mΩ Rated Current/Voltage: 10A/15A,1/2HP,125/250VAC or 10A/300V AC(for FS81-SP) Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts Service Life: Mechanically 1,000,000 (operations) Electrically 500,000 (operations) Operating Temperature: -20~+80(-22~+176) Degree of Protection: IP20/NEMA1 and IPX8(for FS81-SP)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

For example：FS81	-10	-D	-M	-T	-P	Twin	8-18/3
	Switch Type	BLANK:momentary	Enclosure Type	Contact Type	option	option	Wring Information
	10:10A/250V	D:push-on/push-off	blank:Fiber renforced Plastic	Blank:SPDT	P:supplied with 3 proong series plug	Twin:2-pedal	e.g. 8ft 18AWGX3
	15:15A/250V		M:Die cast zinc	T:DPDT(20NO/2NC)	K:Gold plated contact	n-pedal(n=2...6)
				S:DPDT(2-stage)

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:FSP-1G View Details	TYPE:FS-81G-15 View Details	TYPE:FS-81G-15(Twin) View Details
TYPE:FS-81-15 View Details	TYPE:FS-81-15(twin) View Details
