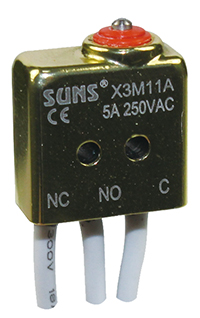

X3/X3M Series Miniature Switches |
Features: *Low operating force and low differential travel
*Switching capability up to 7Amp
*Long mechanical life up to 10,000,000 ops
*Temperature tolerance -65 to +250°F (-54 to 121°C) on standard construction.
High temperature designs for up to +400°F (204°C) for 100 hours |
Installation dimensions:
![](/en/d/file/p/2019-04-07/X3尺寸图.jpg) |
Specifications: Voltage Ratings: 48VDC, 125VAC, 250VAC
Current Ratings: 5, 7A
Operating temperature: Standard: -54oC~+121oC(-65oF~+250oF)
High temperature: up to +204oC(400oF)
Sealing: IP67 for X3M
Mechanical life: Up to 10 millions cycles
Dielectric Strength: 1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity
2,500 VAC, 50/60 Hz for 1 min between current-carrying metal parts and
ground, and between each terminal and non-current-carrying metal parts
Insulation Resistance: >100MW @500VDC
Contact Resistance: <25MW (Initial value)
|
TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.
-
![X3选型.jpg](/en/d/file/p/2019-04-07/X3选型.jpg)
