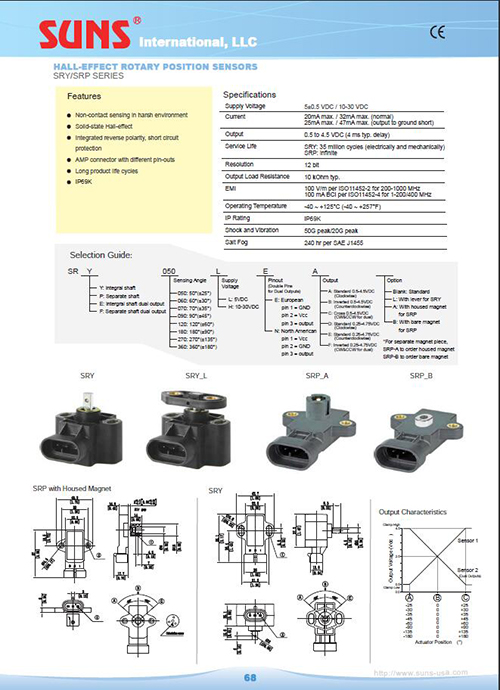

SRY/SRP Hall-effect Rotary Sensors

Features: *Non-contact sensing in harsh environment *Solid-state Hall-effect *Integrated reverse polarity, short circuit protection *AMP connector with different pin-outs *Long product life cycles *IP69K

Installation dimensions:

Specifications: Supply Voltage: 5±0.5 VDC / 10-30 VDC Current: 20mA max. / 32mA max. (normal) 25mA max. / 47mA max. (output to ground short) Output: 0.5 to 4.5 VDC (4 ms typ. delay) Service Life: SRY: 35 million cycles (electrically and mechanically) SRP: infinite Resolution: 12 bit Output Load Resistance: 10 kOhm typ. EMI: 100 V/m per ISO11452-2 for 200-1000 MHz 100 mA BCI per ISO11452-4 for 1-200/400 MHz Operating Temperature: -40 ~ +125°C (-40 ~ +257°F) IP Rating: IP69K Shock and Vibration: 50G peak/20G peak Salt Fog: 240 hr per SAE J1455

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.





TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:SRY View Details

TYPE:SRP View Details
